Description
A high quality pump for moving oils, including motor oils, hydraulic oils, sump oil and vegetable oils. These pumps are popular with mechanics and diesel fitters as the they are reversible and lubricants and oils can easily be pumped out of sumps and then back into engines, motors and generators.

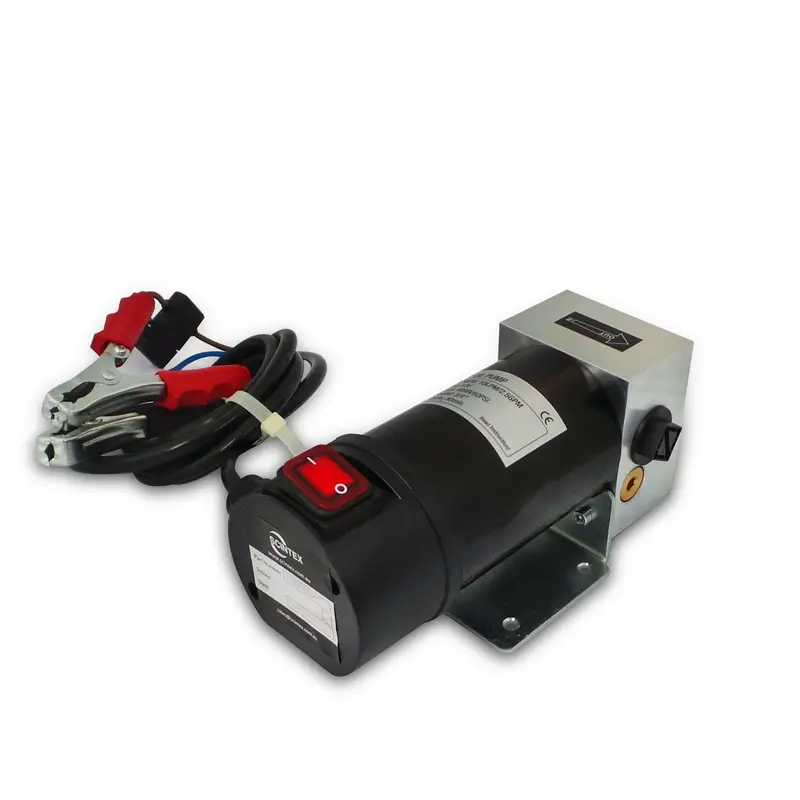

Heavy Duty Oil Pump – 12V or 24V
Suitable for oils with viscosity up to 3,000 SUS (Saybolt Universal Second) / 500cst. Ideal for transferring most oils including engine oils and sump oils.
Note: This pump is only suitable for use with clean or filtered oils. Particulates can jam the gears causing the fuse to blow.
Pump Features:
- Positive displacement gear pump
- Simple design makes cleaning and inspection fast
- Sintered steel gears
- Bypass valve incorporated in pump body
- Motor protection IP55
- Supplied with battery connection cables and fuse
- 12 month warranty
Oil Pump 12V & 24V Manual
| Pump Specifications | Value |
|---|---|
| Voltage | 12V or 24V DC options |
| Inlet / Outlet | 3/4″ BSP Female Threaded |
| Flow rate | 10L/min |
| Discharge Pressure | 410kpag (60psi) max. |
| Fluid temperature range | -10 to 60C |
| Suction Lift | up to 2m |
| Duty Cycle | ~30mins |
| Weight | 3.8kg |
Oil Pump Demonstration Video
Recommended to be used with an inline suction strainer/filter.
