Description
Industrial quality gear pumps, 240 Volt ideal for transferring oils and lubricants. Available in 9LPM and 14LPM versions. Ideal for many types of oils including motor or engine oils, diff oils, gearbox oils and lubricants.
For higher flows we also stock a high flow gear oil pump.

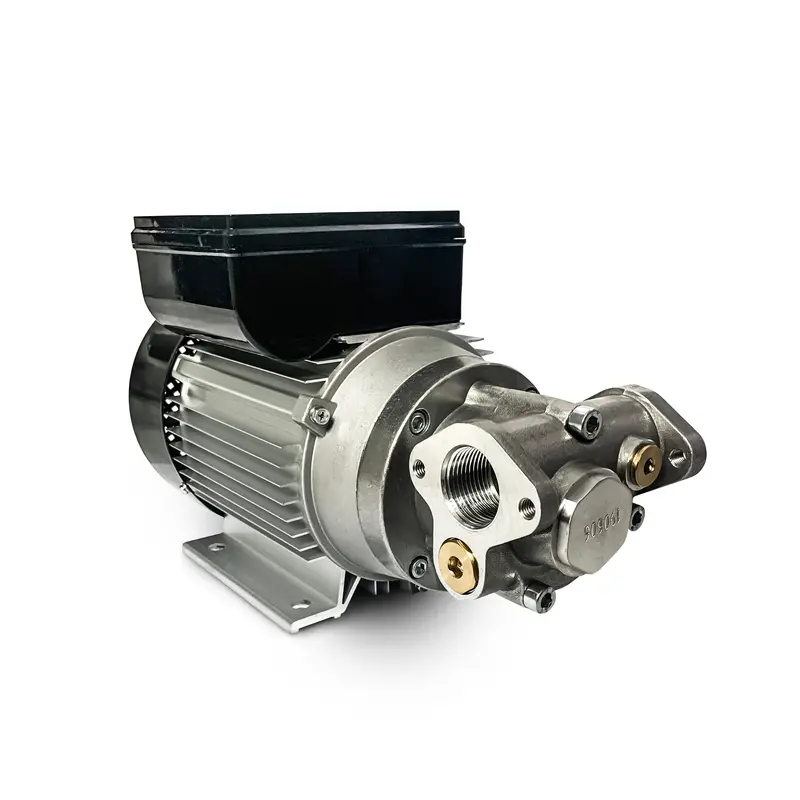

Gear Oil Transfer Pump
These Gear type positive displacement pumps are perfect for transferring light oils, motor oils, vegetable oils and other lubricants. Suited to light industrial use these pumps are a great addition to your business, farm or home shed. They are commonly used by mechanics, diesel fitters, filtration persons and the home handyman
Oil Pump Features:
- High suction capacity
- Develops great pressures
- By-pass Valve
- Low Noise
- 12 Month Australian warranty
Note: Gear pumps pump higher viscosity fluids well due to the rotating internal gears and fairly tight tolerances. Gear pumps do not operate well with dirty fluids or solids which can jam between the gears. Always use this style of pump in conjunction with a suction strainer or filter when the cleanliness of the pumped fluid can’t be guaranteed.
| Pump Specification | SPGP09ALPM | SPGP14LPM |
|---|---|---|
| Voltage | 240V Single Phase | |
| Power | 1000 Watts | |
| Motor | IP55, Continuous Duty Cycle | |
| Flow Rate | 9 L/min | 14 L/min |
| Pressure | 25 Bar (362 psig) | 12 Bar (174 psig) |
| Inlet / Outlet | 1″ BSP Female | |
| Max. Fluid temp. | 60° C | |
| Suction | 2m Priming Height 3m Maximum Lift |
|
| Compatabile Oils | Viscosity up to 10,000 SUS (Saybolt Universal Second) / 2000cst |
|
| Operating Noise | 70 dB | |
| Approx Dimensions | 430 x 270 x 300 mm 14 kg |
|
| Construction | Die Cast Aluminium Pump Body Sintered Steel Gears Mechanical Shaft Seal |
|
240V Oil Pump Manual
Technical Drawing
