Description

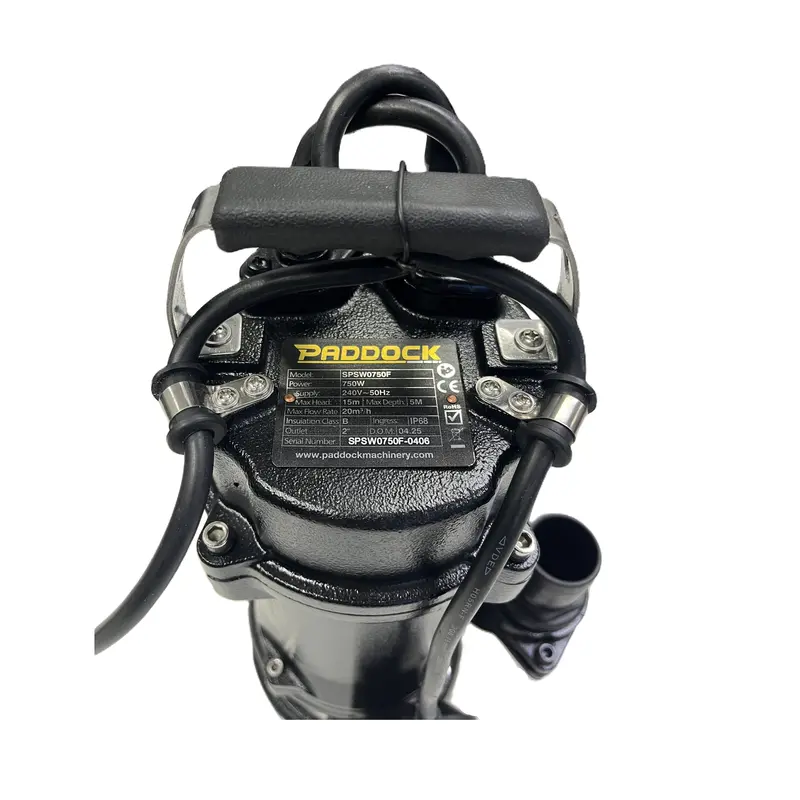

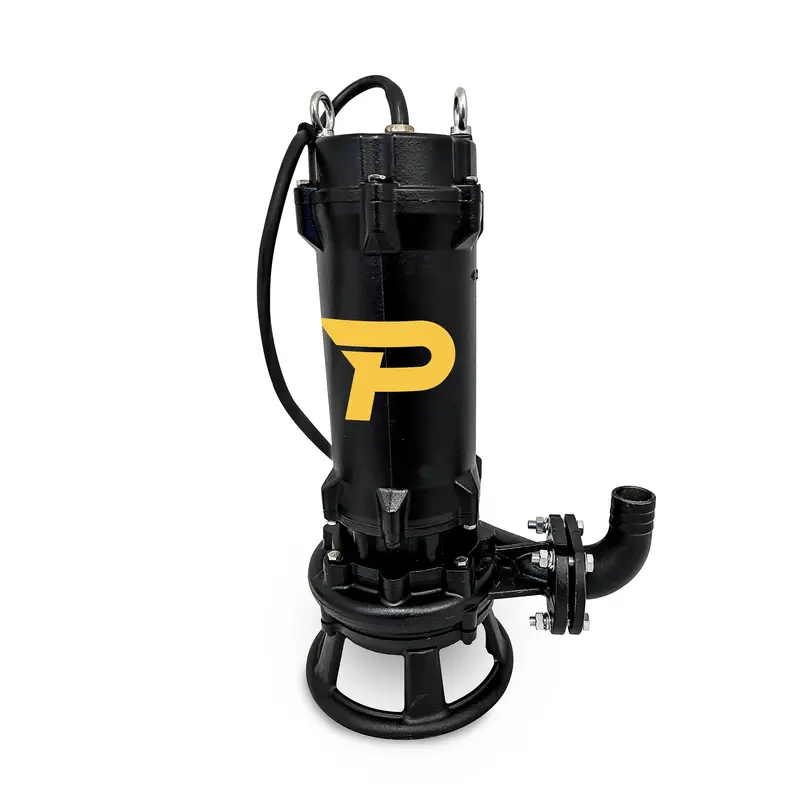

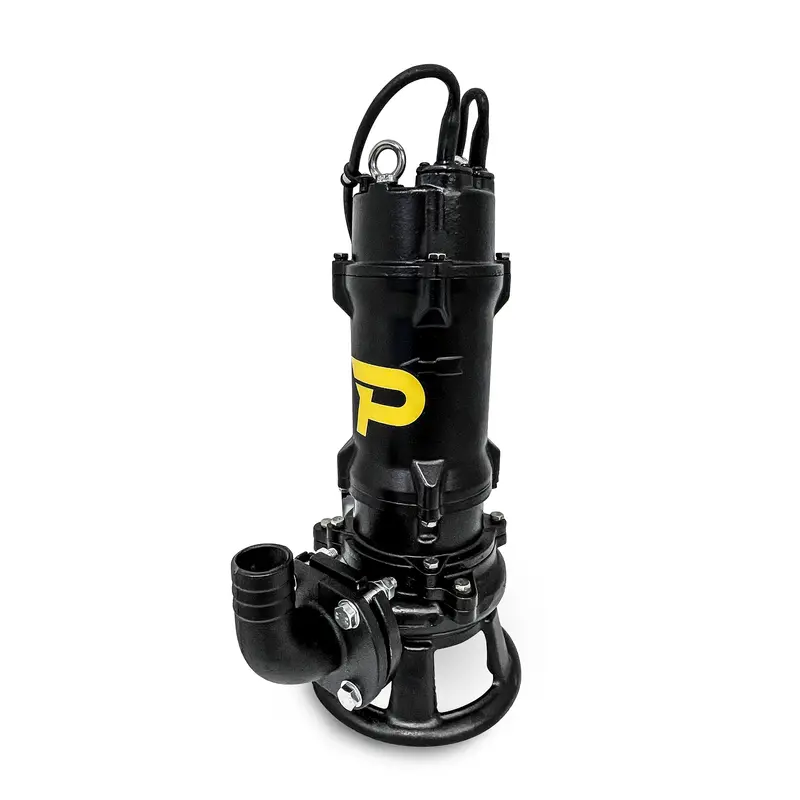

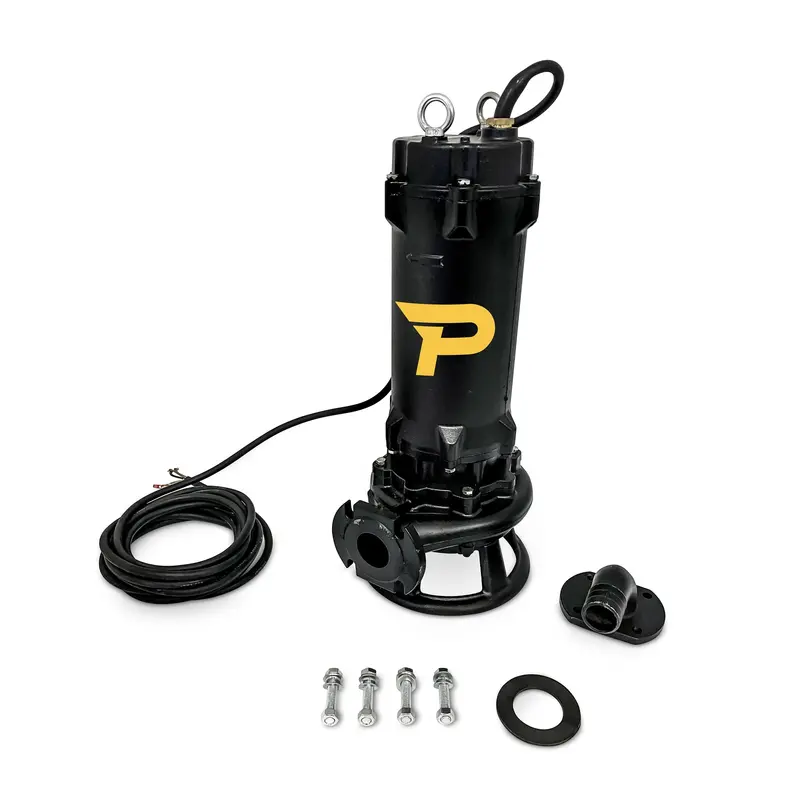

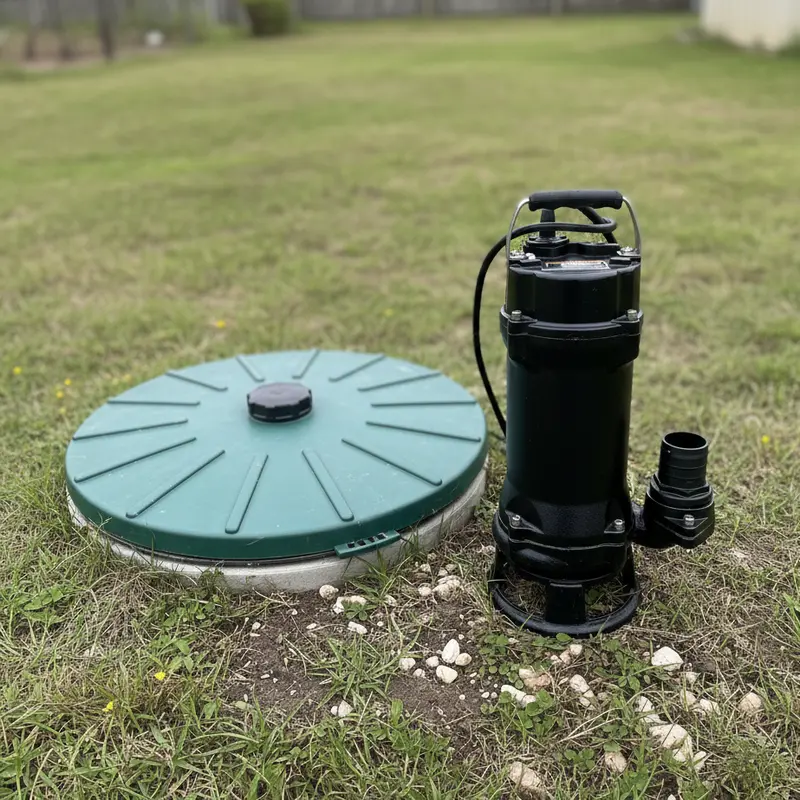

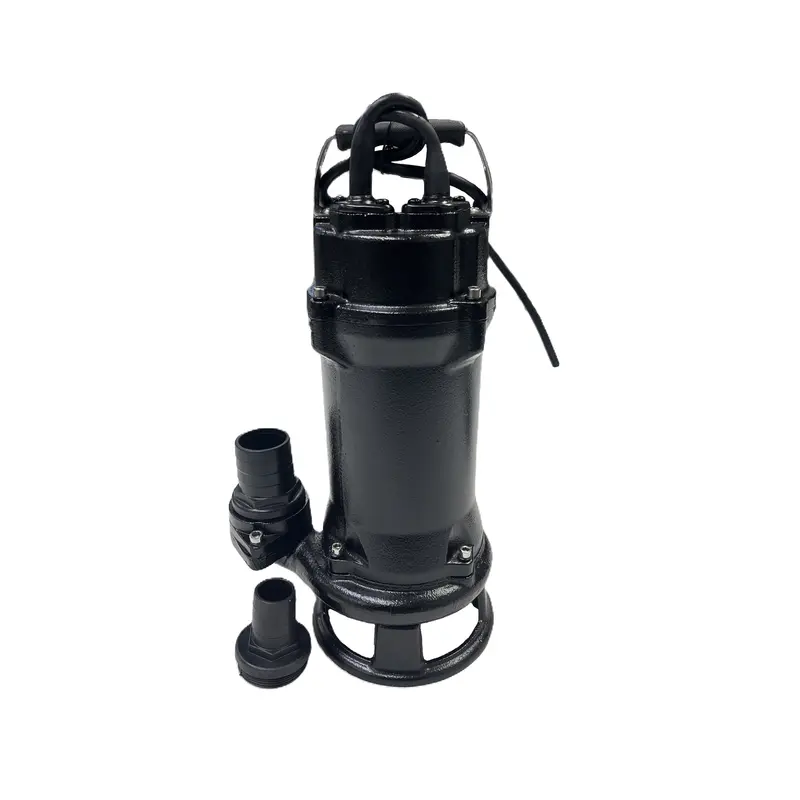

Cast iron vortex pumps by Paddock™ have been specifically designed for installation inside septic tanks and include a non clog impeller design with cutting ring. These pumps can handle fibrous materials and solid matter with less chance of clogging the impeller due to their special vortex flow design and cutter.
Sewage and Waste Water Pumps
The Paddock™ range of septic tank pumps offer exceptional quality at an affordable price. These pumps feature an open non clogging vortex impeller design with cutting ring. These pumps are designed to perform efficiently with low power consumption and are ideally suited to domestic and commercial applications of all sizes.
The Paddock™ range of pumps are available in single and 3-phase power solutions covering a range of popular sizes for different applications. The single phase solutions are available in manual or automatic (via float switch) versions making them an ideal replacement for your existing septic pump which might have failed.
As to be expected from Paddock™, these pumps feature larger motors than their competitors offering greater torque and performance. The septic environment can be challenging for pumps and having greater power combined with a performance cutter/grinder design ensures exceptional reliability from this range of pumps.
Paddock™ pumps are suitable for permanent submerged installation and are guaranteed not to leak water into the electrics. They incorporate a special anti-wicking cable entry design which is virtually faultless.
The pumps are heavy duty constructed from cast iron offering a long lasting robust solution. The pump impellers are hardness HRC49-52 which results in extremely low wear over time.
- Non clog vortex impeller made from a hard-chromium alloy steel to resist wear
- Supplied with 8m cable fitted
- Cutting ring to handle septic solids
- Over engineered design with high torque motors
- Anti-wicking cable entry design
- Thermal motor protection
- Quality mechanical seals
- 24 month warranty
All Paddock™ pumps are fully serviceable with spare parts available to order.
| Model | Discharge Port (mm) |
Motor Output (kW) |
Phase | Max Head (m) |
Max Capacity (L/min) |
Dry Weight (kg) |
Dimensions (mm) |
|---|---|---|---|---|---|---|---|
| Manual Versions | |||||||
| SPSW0750N | 50 | 0.75 | 1P | 15 | 333 | 23.5 | 295x175x430 |
| SPSW1500N | 50 | 1.5 | 1P | 23 | 500 | 37.2 | 350x240x568 |
| SPSW3000N | 50 | 3 | 3P | 32 | 533 | 45.8 | 370x240x575 |
| SPSW7500N | 50 | 7.5 | 3P | 49 | 1,000 | 70.8 | 425x285x660 |
| Automatic Versions | |||||||
| SPSW0750F | 50 | 0.75 | 1P | 15 | 333 | 23.5 | 295x175x430 |
| SPSW1500F | 50 | 1.5 | 1P | 23 | 500 | 37.2 | 340x240x568 |
