Description
Use to switch or change over fuel lines. One 3 port valve will do either supply OR return fuel lines.

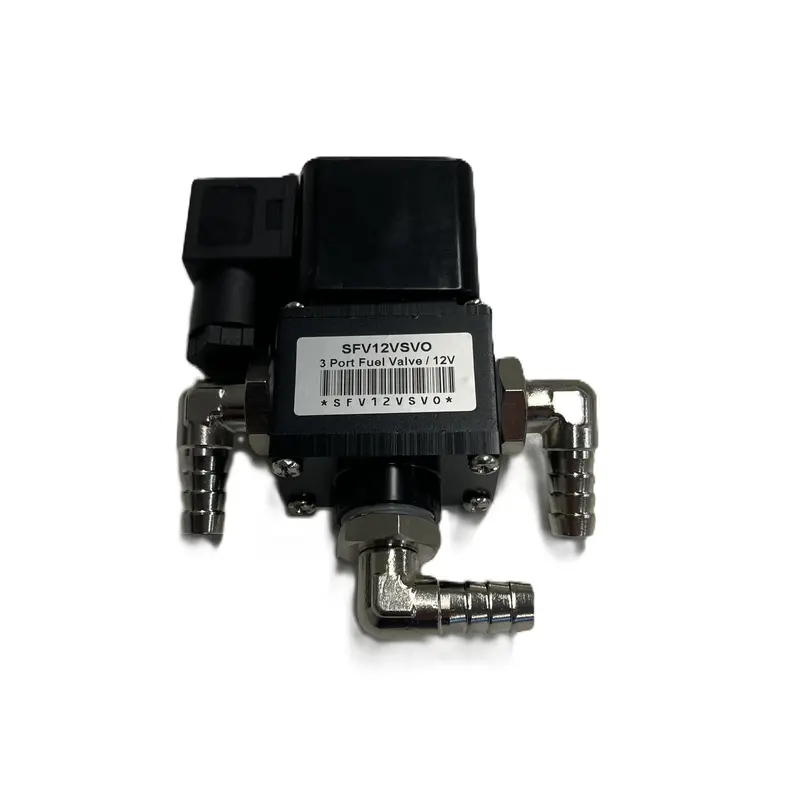

Three Port Fuel Tank Selector Valve
Available in 12V or 24V versions
Machined from high strength aluminium. Ideal for offroad, 4×4 environments as well as marine and boating applications. These 3-port valves contain Viton seals making them compatible for use with diesel, biodiesel, oils, straight vegetable oils, SVO & WVO as well as petrol or unleaded fuels. If your application requires just turning the flow on and off from a tank this can be done by putting a 1/2″ plug in Port 3.
Fittings: The valves are supplied with 3 barbed elbow fittings which are simple to fit to existing fuel hoses. These can be supplied to suit hose of 1/4″, 5/16″, 3/8″, 1/2″ or 5/8″. Please use the drop down menu above to let us know which fittings you require. We can also supply other fitting sizes on request.
Operation & Install Guide
Note: Once the power is disconnected to the valve the ports revert to default Port 1 & 2 open.
| Specification | Value |
|---|---|
| Voltage | 12V DC or 24V DC |
| Seals | Viton |
| Fittings (Included) |
1/4″, 5/16″, 3/8″, 1/2″ or 5/8″ Elbow barb Note: 1/2″ tail option is supplied as a straight tail fitting only. |
| Ports 1, 2 & 3 | 1/2″ NPT |
| Orifice | 12mm |
| Operating Pressure | 0-10 Bar |
| Operating Temperature | -40 to 100C |
| Construction | Aluminium |
| Warranty | 12 Months |
For dual fuel tanks and dual fuel systems we can also supply a Pollak 6 Port Motorised Valve
NOTE: Some fitting options only available in brass.
