Diesel-Powered Water Pumps From Paddock For Heavy-Duty Applications

Description

The range of diesel engine driven water transfer pumps by PADDOCK Machinery offer exceptional performance at a realistic price. These pump and engine combinations have been designed to move high volumes of water around your farm, property, business or construction site with ease.

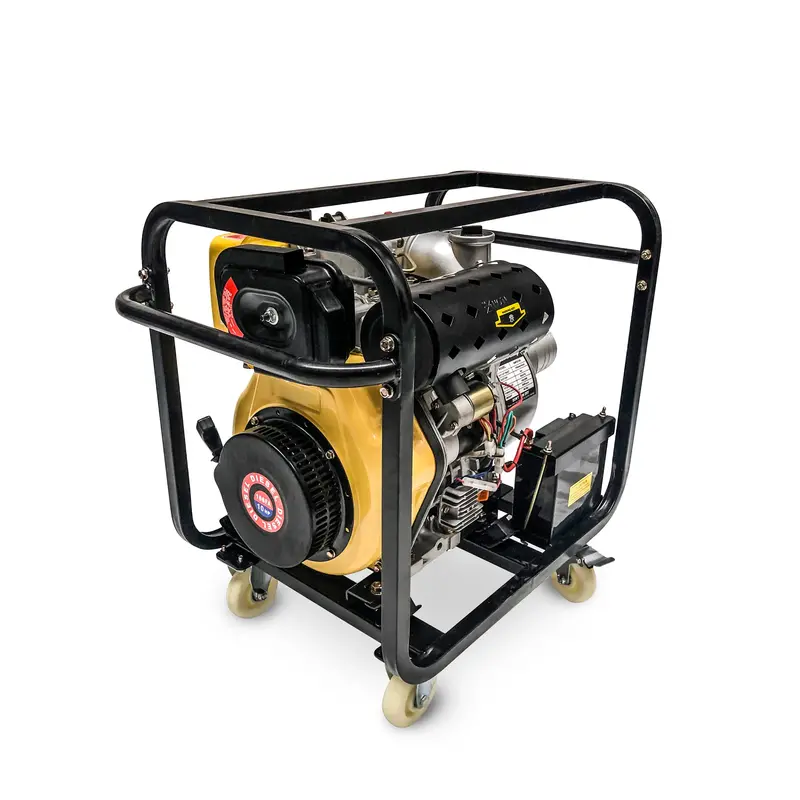

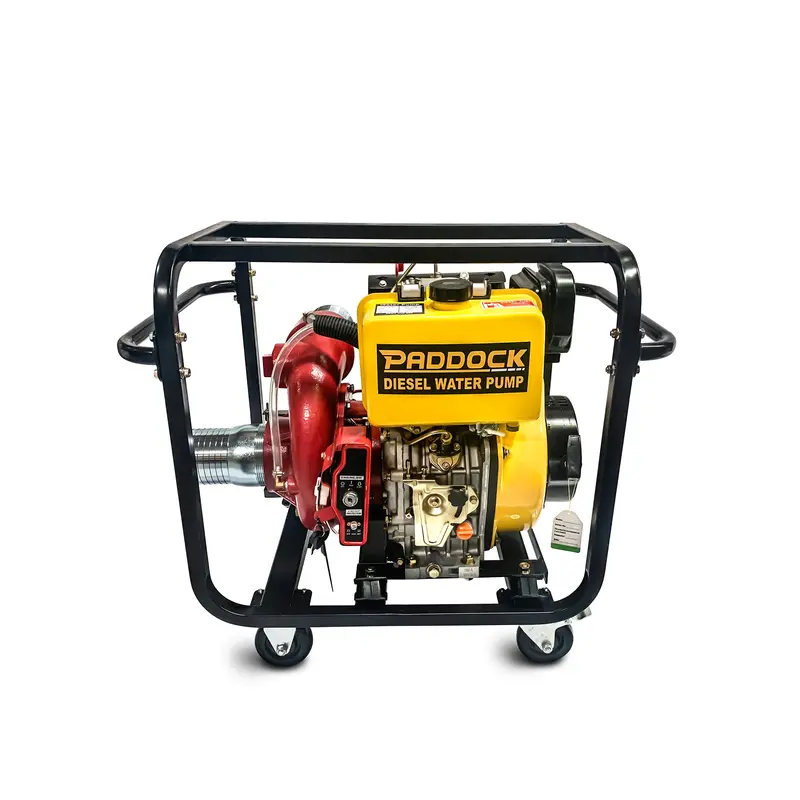

Electric Start Diesel Engine Driven Water Transfer Pumps

These pump packages are compact yet still pack a serious punch with massive transfer flow rates and high diesel engine efficiency and reliability.

The skids have wheels which are great for applications where the pump is regularly being relocated. If you have a permanent installation, they can quickly be removed allowing for the frame to be bolted in a single position.

All packages are electric key start with recoil backup meaning even if you haven’t used your pump for a extended period and the onboard battery has run flat, you can still get the pump working via the reliable pull cord.

The packages are ideal for emergency situations where water needs to be moved fast.The high volume pumps have been carefully selected and coupled to the required horsepower diesel engine to optimise the packages output.

High Volume Water Transfer Series:

• Electric start diesel engine with recoil back up
• Higher transfer rates from engineered pump/engine solutions
• Steel roller over frame with removable transport wheels
• Simple air cooled and water cooled engine solutions
• Easy access to spare and consumable parts
• 2 yr warranty

High Pressure Series

• Discharge lift up to 80m
• Flow rates up to 80,000 L/hr
• Exceptional build quality and packed with features
• Suited to clean water applications such as irrigation and fire fighting

Trash Pump Series

• Refer to separate listing for Diesel Trash Pumps

Optional Extras: Hoses, Fittings & Camlocks

Scintex can supply a range of hose and fittings options to suit these pumps. Our range of suction, discharge and lay flat hoses are available here. For inlet strainers and check valves see here. For camlock fittings in aluminium and stainless steel see here. Scintex is happy to help advise with the set up of these pumps and supply any fittings, hose or clamps you may require.

Water Transfer Series

Specification	SWPD050	SWPD080	SWPD100	SWPD150
Inlet / Outlet	50mm (2″)	80mm (3″)	100mm (4″)	150mm (6″)
Max. Flow Rate	30,000 L/hr	60,000 L/hr	85,000 L/hr	200,000 L/hr
Max. Discharge Head	25 m	28 m	25 m	15 m
Max. Pressure	245 kPa 35 PSI	274 kPa 40 PSI	245 kPa 35 PSI	147 kPa 21 PSI
Suction Lift	7 m	7 m	7 m	6 m
Engine	Diesel 4.5 hp 170 Single-cylinder, Vertical, 4-Stroke, air-cooled, Direct-injection	Diesel 6.5 hp 178 Single-cylinder, Vertical, 4-Stroke, air-cooled, Direct-injection	Diesel 10 hp 186 Single-cylinder, Vertical, 4-Stroke, air-cooled, Direct-injection	Diesel 13 hp 192 Single-cylinder, Vertical, 4-Stroke, air-cooled, Direct-injection
Diesel tank capacity	2.5 L	3.5 L	5.5 L	15 L
Run time per tank	2.5 hrs	2.5 hrs	2.5 hrs	6 hrs
Starter	Electric key with recoil backup	Electric key with recoil backup	Electric key with recoil backup	Electric key with recoil backup
Additional Features	Includes transport wheels Includes 12v starter battery	Includes transport wheels Includes 12v starter battery	Includes transport wheels Includes 12v starter battery	Includes transport wheels Includes 12v starter battery
Dimensions (LxWxH)	550 x 470 x 545mm	550 x 470 x 575mm	645 x 500 x 620mm	910 x 580 x 770mm
Weight	48 kg	56 kg	69 kg	98 kg
Warranty	2 yrs	2 yrs	2 yrs	2 yrs

High Pressure Series

Specification	SWPD050HP	SWPD080HP	SWPD100HP
Inlet / Outlet	50mm (2″)	80mm (3″)	100mm (4″)
Max. Flow Rate	30,000 L/hr	42,000 L/hr	80,000 L/hr
Max. Discharge Head	75 m	80 m	50 m
Max. Discharge Pressure	735 kPa 107 PSI	784 kPa 114 PSI	490 kPa 71 PSI
Suction Lift	7 m	7 m	7 m
Engine	Diesel 6.5 hp 178 Single-cylinder, Vertical, 4-Stroke, air-cooled, Direct-injection	Diesel 10 hp 186 Single-cylinder, Vertical, 4-Stroke, air-cooled, Direct-injection	Diesel 13 hp 192 Single-cylinder, Vertical, 4-Stroke, air cooled, Direct-injection
Diesel tank capacity	3.5 L	5.5 L	5.5 L
Run time per tank	1.8 hrs	1.9 hrs	1.7 hrs
Starter	Electric key with recoil backup	Electric key with recoil backup	Electric key with recoil backup
Additional Features	Includes transport wheels Includes 12v starter battery	Includes transport wheels Includes 12v starter battery	Includes transport wheels Includes 12v starter battery
Dimensions (LxWxH)	550 x 470 x 575mm	645 x 500 x 620mm	645 x 500 x 620mm
Weight	60 kg	70 kg	72 kg
Warranty	2 yrs	2 yrs	2 yrs
